EMI Field Simulation (Beta)

Features EMI Field Simulation (Beta)

A simulation of electro-magnetic fields generated by pairs of coils arranged in a cube, like you encounter in Helmholtz-like arrangements for EMI Field compensations.You can set the dimensions of the coil arrangement and the current through each pair and evaluate the amplitude of the field at any point in 3D space by moving sliders.

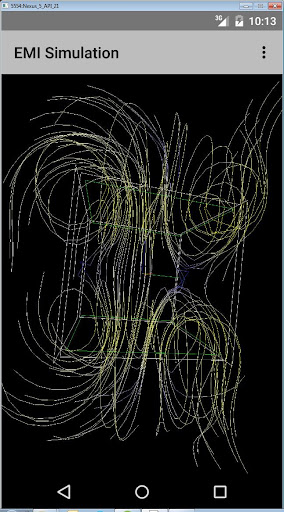

You may have a look at a 3D-evaluation of the field lines (GLES2.0-device needed).

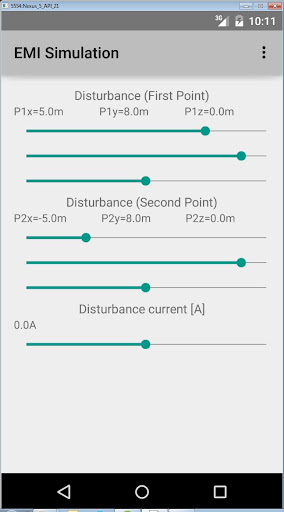

NEW: You are able to define a wire strip as a disturbance!
You can try to compensate the field by means of the cubic arrangement!
Furthermore, you can see how the compensation result looks like.Please note: If you have no device with GLES2.0-capability, the buttons for 3D won´t show up.
Please note: This is a (first) beta-version for free download and use.
Feel free to test it and send me your opinion (and wishes).Thank you for trying out my app!
Please send me your feedback via mail.
